Rexroth A4VG180 Variable Axial Piston Pump
Swashplate design variable axial piston pump designed for high-performance hydraulic systems.
Elephant Fluid Power Co., Ltd provides high-quality Rexroth A4VG180 Variable Axial Piston Pumps with competitive pricing, fast lead times, comprehensive after-sales services, and one-year warranty.
Technical Specifications
| Size |
28 |
40 |
56 |
71 |
90 |
125 |
180 |
250 |
| Displacement Vgmax (cm³) |
28 |
40 |
56 |
71 |
90 |
125 |
180 |
250 |
| Boost Pump VgSp (cm³) |
6.1 |
8.6 |
11.6 |
19.6 |
19.6 |
28.3 |
39.8 |
52.5 |
| Max Continuous Speed (rpm) |
4250 |
4000 |
3600 |
3300 |
3050 |
2850 |
2500 |
2400 |
| Max Limited Speed (rpm) |
4500 |
4200 |
3900 |
3600 |
3300 |
3250 |
2900 |
2600 |
| Max Intermittent Speed (rpm) |
5000 |
5000 |
4500 |
4100 |
3800 |
3450 |
3000 |
2700 |
| Minimum Speed (rpm) |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
| Max Flow (l/min) |
119 |
160 |
202 |
234 |
275 |
356 |
450 |
600 |
| Max Power (kW) |
79 |
107 |
134 |
156 |
183 |
237 |
300 |
400 |
Additional Technical Data
Maximum Torque: 1144 Nm at 400 bar
Moment of Inertia: 0.0444 kgm²
Filling Capacity: 3.1 L
Weight: 101 kg (without through drive)

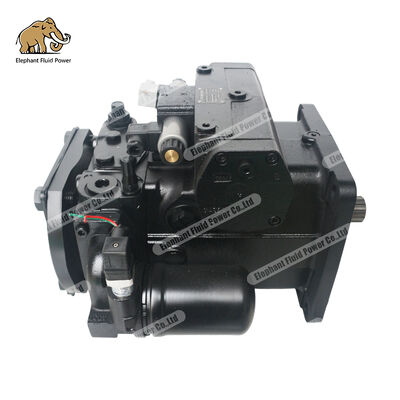

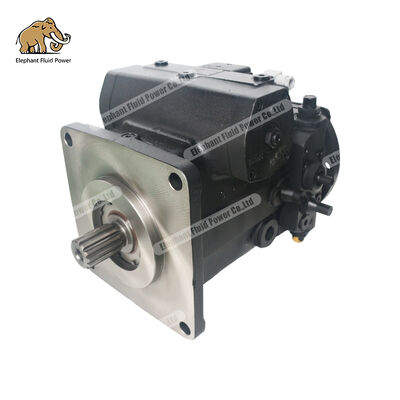

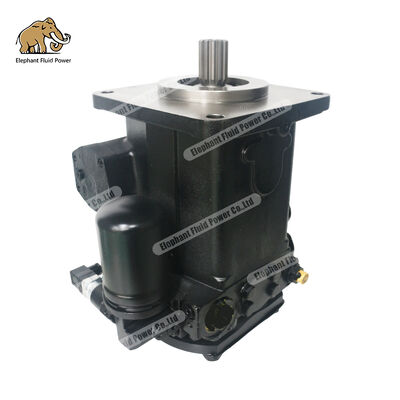

Product Images
About Elephant Fluid Power
Elephant Fluid Power supplies hydraulic pumps, hydraulic motors, and pump parts with quality equivalent to original equipment. We offer competitive pricing, fast lead times, and comprehensive after-sales services, making us the preferred choice for hydraulic replacements.
Product Range
Rexroth Series
A2F12/23/28/55/80/107/160/200/225/250/335/500, A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500, A7V28/55/80/107/160/225/250/355/500/1000, A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500, A4VSO45/71/125/180/250/500/1000, A4V40/56/71, A4VG28/40/45/50/56/71/90/125/140/180/250, A4VTG71/90, A10VSO10/16/18/28/45/63/71/85/100/140, A10VG18/28/45/63, A11VO60/75/95/130/145/160/190/250/260
Additional Manufacturer Series
Kawasaki, KAYABA, Komatsu, Liebherr, Toshiba, Linder, Sauer, Eaton, Vickers, Yuken, Parker, Hitachi, Tokiwa, Uchida, Nachi
With 20 years of experience in the hydraulic industry, our products have been exported to more than 80 countries. We have built a strong reputation based on quality products and excellent service, becoming a world-renowned hydraulic company. We welcome partnerships and friendships from around the world.
