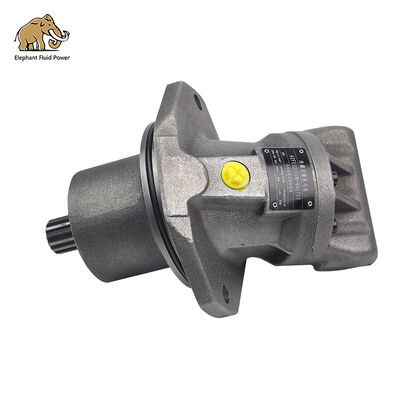

A2FE63 Hydraulic Motor for Catarpillar 2762088

The A2FE Rexroth-type hydraulic motor is a high-pressure, fixed-displacement plug-in axial piston motor designed for compact, heavy-duty applications like track drives. It features a bent-axis design and is available in displacements ranging from 28 to 355 cc/rev, with pressures up to 450 bar.

Size			28	32	107	125	160	180	250	355
Displacement geometric, per revolution	Vg	cm3	28.1	32	106.7	125	160.4	180	250	355
Nominal pressure	Pnom	bar	400	400	400	400	400	400	350	350
Maximum pressure	Pmax	bar	450	450	450	450	450	450	400	400
Maximum speed 1)	nnom	rpm	6300	6300	4000	4000	3600	3600	2700	2240
	nmax 2)	rpm	6900	6900	4400	4400	4000	4000
Inlet flow 3) at nnom	qv	l/min	177	202	427	500	577	648	675	795
Torque 4) at pnom	M	Nm	179	204	679	796	1021	1146	1393	1978
Rotary stiffness	c	kNm/ rad	2.93	3.12	11.2	11.9	17.4	18.2	73.1	96.1
Moment of inertia for rotary group	JTW	kg.m2	0.0012	0.0012	0.0116	0.0116	0.022	0.022	0.061	0.102
Maximum angular acceleration	α	rad/s2	6500	6500	4500	4500	3500	3500	10000	8300
Case volume	V	I	0.2	0.2	0.8	0.8	1.1	1.1	2.5	3.5
Weight (approx.)	m	kg	10.5	10.5	34	36	47	48	82	110

Model:

A2FE63 Hydraulic Motor for Catarpillar 2762088

If you need any A2FE, or other modes of the piston pumps, feel free to check with us.

Don't forgot share the nameplate photo and complete pump or motor model.

About Elephant Fluid Power, as direct factory of the Rexroth hydraulic pumps, for the A2FE Motor we provide:

• Same design as Rexroth
• Same performance
• Same internal spare parts
• Real warranty

We also supply other Rexroth OEM Pumps.

A2F	A2FE	A4VG	A4VSO	A7VM	A10VSO	A4FM
A2FO	A4FO	A4VTG	A6VM	A8VO	A11VO	A20VL190

About Elephant Fluid power:

Mastering Power, Steadfast as an Elephant – Elephant Fluid, Your Reliable Global Hydraulic Power Partner Elephant Fluid is a foreign trade enterprise specializing in the R&D, production, and sales of core hydraulic power components. Since its establishment, we have been deeply involved in the hydraulic field, with our main products covering high-performance hydraulic pumps, hydraulic motors, and complete hydraulic system solutions. We deeply understand that stable and reliable hydraulic power is the cornerstone of efficient operation in heavy machinery, engineering equipment, industrial automation, and marine engineering. Therefore, Elephant Fluid adheres to the core philosophy of "Mastering Power with Elegance," infusing cutting-edge technology and exquisite craftsmanship into every product. Our hydraulic pumps and motors are renowned for their powerful output, superior efficiency, and extended service life, maintaining stable performance even under the most demanding operating conditions, as powerful and composed as an elephant. With a rigorous quality control system, competitive pricing, and an agile global supply chain, Elephant Fluid's products have been exported to many countries and regions worldwide, including Europe, North America, Southeast Asia, and the Middle East, winning the trust and long-term cooperation of numerous international customers. We are not only a product supplier, but also a trustworthy partner for our customers. Elephant Fluid is committed to providing continuous power support to global customers through professional technical support, rapid after-sales response, and customized services, helping your equipment and business to achieve steady and long-term development.

More A2F Models we supply.



A2FM28	O&KAntriebstechnik 211.13.25.45/874819
A2FE107	O&KAntriebstechnik 832179(1730328)OLD
A2FM63	SERVIPLEM,S.A. 10166
A2FO16	SermacS.r.l. 2401111
A2FO23	SermacS.r.l. 2401094
A2FO28	SermacS.r.l. 2401128
A2FO28	SermacS.r.l. 2401188
A2FM90	OFFICINERIUNITEUDINES.P.A. 14963010200
A2FM90	OFFICINERIUNITEUDINES.P.A.
A2FM56	Liebherr 10454450
A2FM80	Liebherr 10454451
A2FM90	Liebherr 10454452
A2FM80	GORICAIndustriesL.L.C -
A2FM90	C.&B.DUES.R.L. 4999
A2FM56	Terex 5364664220 FuchsMHL331
A2FM180	Terex 2415345
A2FE125	Mantsinen Materialumschlagk200
A2FM160	KomatsuMining 63423540OLD
A2FM45	Bucher Municipal 7561-1772
A2FM12	MorrisIndustries Mobileapplicatton
A2FM16	Volva 54610340
A2FM45	O&KAntriebstechnik 831692 WX20-Schwenkwerk
A2FE45	FavelleFavcoCrane(M)SDNBHD
A2FM125	Liebherr 510232008 LTM-1120
A2FM107	Kässbohrer 8.047.154.000.0 PB200/300Fahrmotor
A2FM45	Terex 5364664230 MHL320
A2FM80	Junjin ConcretepumpSA-0400
A2FM125	Catarpillar 214-1094
A2FM500	Catarpillar 224-4988 RH120Ctraveldrive
A2FM90	Metsa Minerals N05530092 Mobilescreening(BrechundSiebanlage)LokotackST620
A2FM23	Dynapac 4749260420
A2FM16	Bomag 5801054 BW141/160
A2FM32	Liebherr 512250114 HD-843
A2FO32	Terex 6063677
A2FM125	LMGLübeckerMaschinenbau/ThyssenKruppIndustrial 1600828 shipcrane
A2FM23	VilakoneOy 32220040
A2FM28	VilakoneOy 32220056
A2FM32	VilakoneOy 32220055
A2FM107	Kässbohrer/Prinoth 8.047.147.000.0/0016134OLD PB200/300Fahrmotor
A2FM125	TadanoFaun 99707030697 ATF220-Gcrane
A2FLM250	Catarpillar 242-4042-02
A2FO63	COLMARS.P.A. H3195400
A2FE63	Catarpillar 2762088
A2FE180	Catarpillar 1751743
A2FE180	Catarpillar 1751743
A2FM200	Catarpillar 3688052
A2FM200	Catarpillar 3688052
A2FM80	TADANOFAUN 99707751309
A2FE63	Bonffglioli 1T833025300
A2FM32	Claas 5030390
A2FE355	Catarpillar OLD:152-1134 NEW:173-1685
A2FE125	Bonny ED460-5
A2FM90	Catarpillar 171-1881
A2FM63	KomatsuMining 95023240
A2FE63	Bonffglioli 1T833025300
A2FE125	Aebi Schmidt 0286961-8OLD SweeperCJS914
A2FM125	Bauar 356616
A2FM160	Mobile MK30
A2FM56	Komatsu 90748640
A2FM125	Bucher Municipal
A2FM45	MRSGreiferGmbH
A2FM45	MRSGreiferGmbH
A2FM125	ROPA 272142
A2FM56	Komatsu 90748640
A2FM16	Aebi Schmidt 12-97601598
A2FM16	Aebi Schmidt 12-97601598OLD
A2FM45	Volva 2814575
A2FM125	TerexMHPSGmbH 51834940
A2FM80	Stetter;SERVIPLEM,S.A.;IntermixGmbH; ;CIFAMIXERSS.R.L. 60 107 081; 10235 ; 6-49-310
A2FM28	Stetter 10 146 716
A2FM63	Stetter 60 107 617
A2FM63	Stetter 60 107 617
A2FM80	Stetter 60 107 082
A2FM80	Stetter 60 107 618
A2FM80	Stetter 60 107 618
A2FM90	Stetter 60 107 084
A2FM90	Stetter 60 107 619
A2FM90	Stetter 60 107 619
A2FM28	Schwing 10148051
A2FO10	Schwing 10089049
A2FM16	Liebherr 5102 322 14
A2FM107	Liebherr 5102 309 14
A2FM90	IntermixGmbH;StetterGmbH;CIFAMIXER SS.R.L. 6-49-300; 60 107 083; 236393
A2FM80	IntermixGmbH 6-49-310
A2FM80	IntermixGmbH 6-49-310
A2FM80	IntermixGmbH 6-49-311
A2FM90	IntermixGmbH 6-49-300
A2FM9	IntermixGmbH 6-49-300
A4VTG9	Intermix 6-51-291
A2FM90	CIFAS.P.A.;SIMES.N.C. 236393
A2FM63	CIFAS.P.A. 629495
A2FO10	CIFA 908572
A2FO10	CIFA 908572
A2FO12	CIFA 908572
A2FO16	CIFA K1019064+224581
A2FO16	CIFA K1019064
A2FO16	CIFA 909169 / 2401104
A2FO16	CIFA 908202
A2FO23	CIFA 906529
A2FO23	CIFA 906737
A2FM/E	CIFA 221082
A2FO28	CIFA 910420
A2FO32	CIFA 910528
A2FO32	CIFA K1019968
A2FM80	CIFA K1018890
A2FM90	CIFA 236393
